The Orbit class

The Orbit class#

The Orbit class is used to simulate the orbits of satellites. It relies on orekit to simulate the position of satellites based on Two Line Elements (TLE) and on a linear interpolation to obtain a sufficiently fine time resolution while keeping compute time low enough.

A basic use of this class is as follows:

from orbitx import Orbit
import datetime

orbit = Orbit.simulate(
    satellites=["S6", "SA"],
    start_date=np.datetime64("2020-02-01T00:00:00"),
    end_date=np.datetime64("2020-02-01T12:00:00"),
    propagation_sampling_interval=np.array(20, dtype="timedelta64[s]"),
    interpolation_sampling_interval=np.array(5, dtype="timedelta64[s]"),
    reference_date=np.datetime64("2000-01-01T00:00:00"),
)
print(orbit)

Orbit object for satellites ['Sentinel-6', 'Saral-AltiKa'].
Start date: 2020-02-01T00:00:00
End date: 2020-02-01T12:00:00
Propagation sampling interval: 20 seconds
Interpolation sampling interval: 5 seconds
Reference date used to represent time in seconds since: 2000-01-01T00:00:00
Number of simulated times: 8641.
Created on 2026-01-06T13:20:34 using the version 1.0 of orbitx.

The satellites attribute is a list of satellite short names of arbitrary length. The supported short names are currently the following ones:

"CS2": "CryoSat-2",
"J2": "JASON-2",
"J3": "JASON-3",
"LS8": "Landsat-8",
"LS9": "Landsat-9",
"N20": "NOAA-20",
"S2A": "Sentinel-2A",
"S2B": "Sentinel-2B",
"S3A": "Sentinel-3A",
"S3B": "Sentinel-3B",
"S6": "Sentinel-6",
"SA": "Saral-AltiKa"

Note that the attributes start_date, end_date, and reference_date (optional defaulting to 1st of January 1970) must be given as numpy [datetime64 objects](https://numpy.org/doc/stable/reference/arrays.datetime.html) and the attributes propagation_sampling_interval and interpolation_sampling_interval must be given as numpy timedelta64 objects.

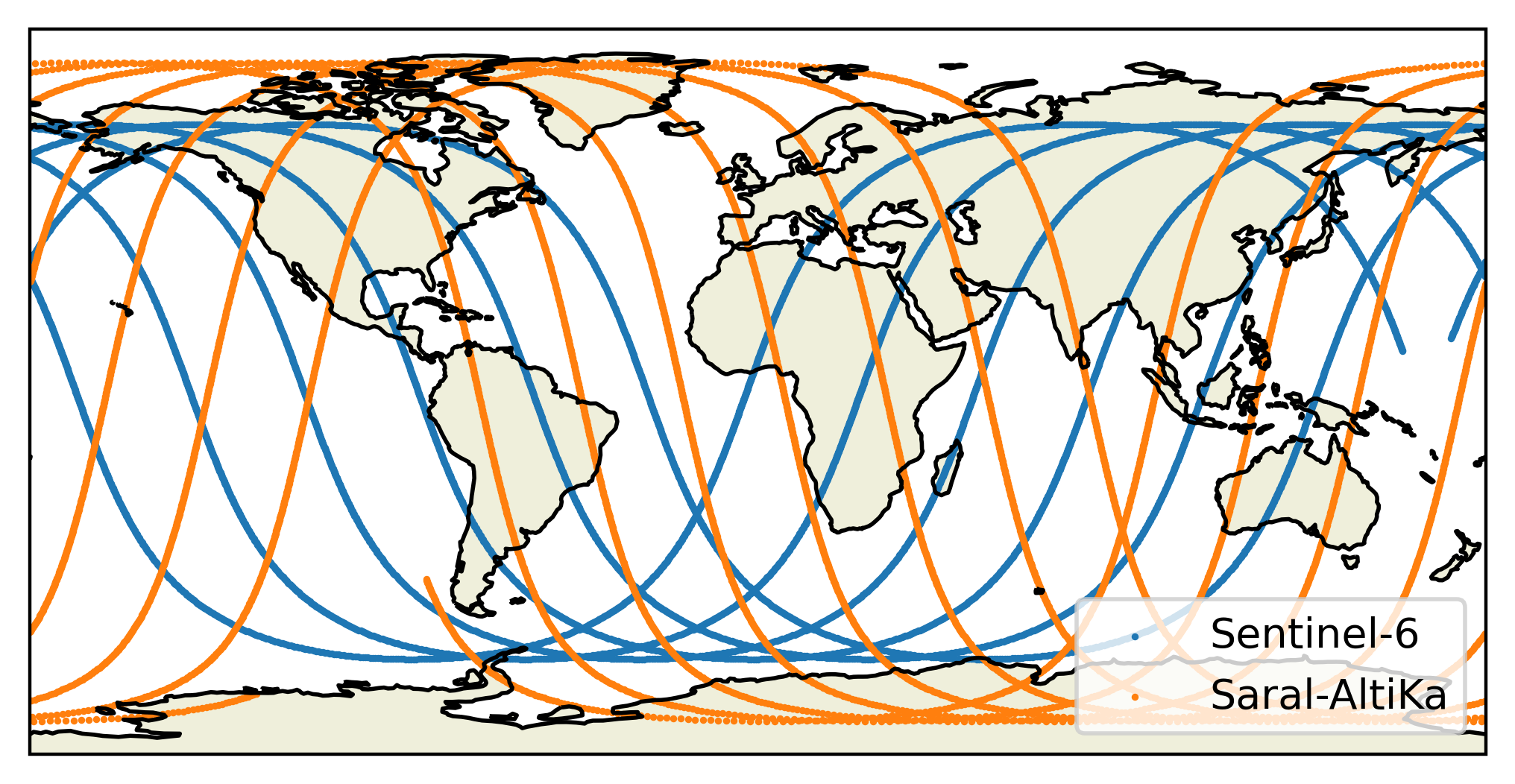

An orbit object can simply be plotted with a call to the plot method of the class:

orbit.plot()
../../_images/orbit_plot.png

The core of an Orbit class object is its orbits attribute. It contains an xarray.Dataset object. This dataset uses a time coordinate, which is given in seconds since the chosen reference date (float64). It contains the following variables:

  • time_datetime: gives a numpy.datetime64 representation of the time coordinate

  • lat<i> (i gives the number of the satellite in the satellites argument) latitude of the satellite

  • lon<i> (i gives the number of the satellite in the satellites argument) longitude of the satellite

And it contains the following attributes:

  • satellites: the list of the satellites for which orbits are given

  • start_date: The start date of the orbit in seconds since the reference date

  • end_date: The end date of the orbit in seconds since the reference date

  • propagation_sampling_interval: the number of seconds separating two successing simulated (physics based) positions in the orbit

  • interpolation_sampling_interval: the number of seconds separating two interpolated positions in the orbit

print(orbit.orbits)

<xarray.Dataset> Size: 415kB
Dimensions:         (time: 8641, satellites: 2)
Coordinates:
* time            (time) float64 69kB 6.338e+08 6.338e+08 ... 6.339e+08
* satellites      (satellites) <U2 16B 'S6' 'SA'
Data variables:
    reference_date  datetime64[s] 8B 2000-01-01
    time_datetime   (time) datetime64[s] 69kB 2020-02-01 ... 2020-02-01T12:00:00
    lat             (time, satellites) float64 138kB 13.25 -74.64 ... -46.37
    lon             (time, satellites) float64 138kB 171.5 -124.0 ... -81.99
Attributes:
    satellites:                       ['S6', 'SA']
    start_date:                       633830400.0
    end_date:                         633873600.0
    propagation_sampling_interval:    20
    interpolation_sampling_interval:  5

An Orbit object can be exported to netCDF4 format and loaded from such a file as well (as long as the structure is as expected).

orbit.to_netcdf("./test_export/")

loaded_orbit = Orbit.from_netcdf("./test_export/2020-02-01_2020-02-01_psi20.0_isi5.0_orbit_S6_SA.nc")

print(loaded_orbit == orbit)

True
